The Mobile Asphalt Plant Manufactured By Our Company Is Technologically Uncommon And Is Available At Relatively Low Cost. The System Has High Functionality And Provides Operators With A Highly Efficient Machine Allowing For Effective And Totally Satisfying Road Construction. Also Known As Asphalt Hot Mixing Plant, It Accommodates Operator’s Total Needs By Being Easily Moved From Location To Location With Relative Ease, Allowing For Speedy Assembly And Operational Use. Mobile Asphalt Plant Has Been Designed And Developed By Using Latest International Technology And Use Them For The Construction Of Roads On Small Or Medium Scale. This System Is Basically Designed And Developed For Easy Assembling And Disassembling For Convenient Moving From One Place To Another Very Often.
The entire plant consists of two trailers only 40 feet.

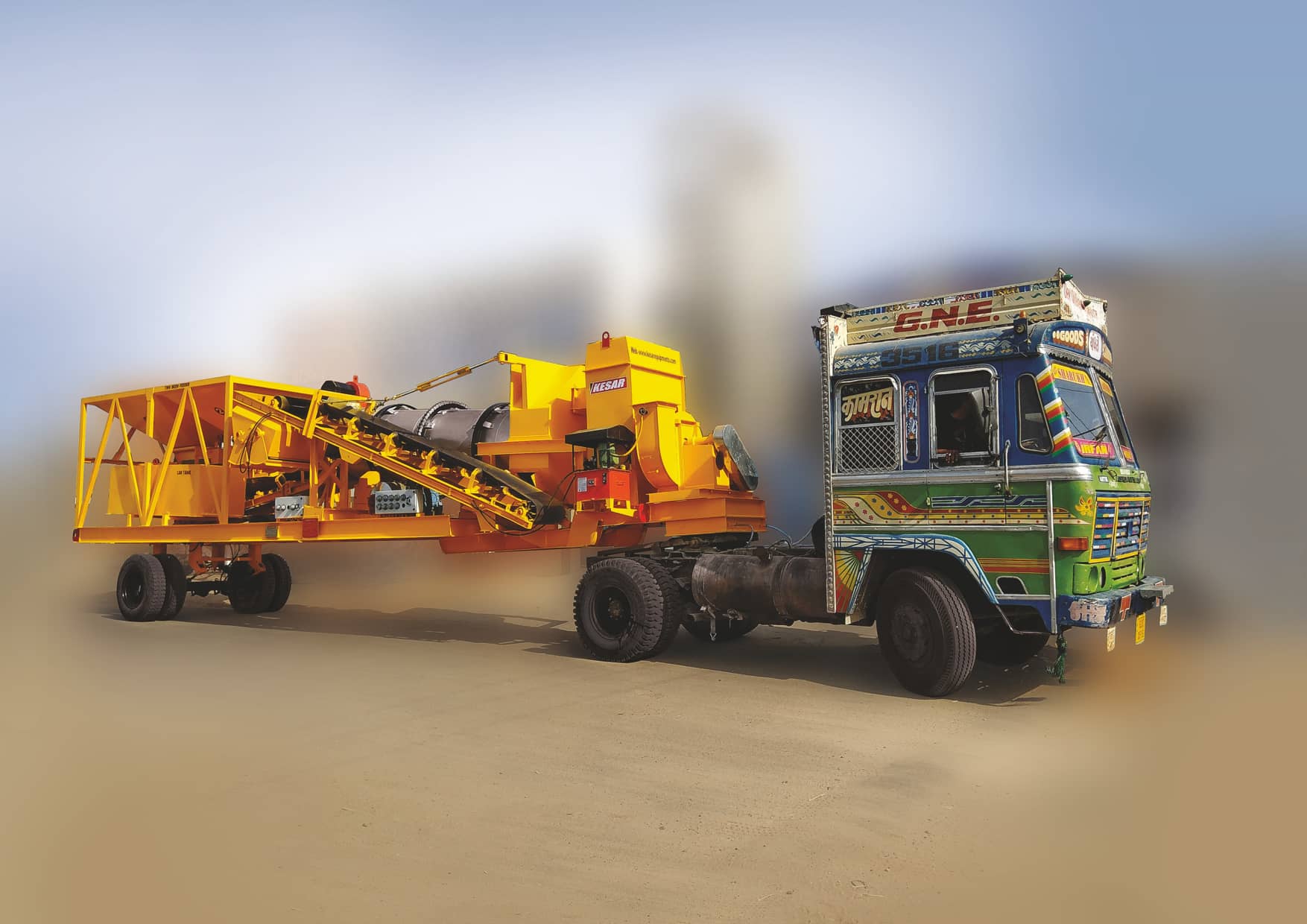

Trailer No.1 consists of 2/3 bin cold aggregate feeder, Thermo-drum unit with burner, 1 kl fuel tank, primary dust collector, exhaust system and Load out conveyor.

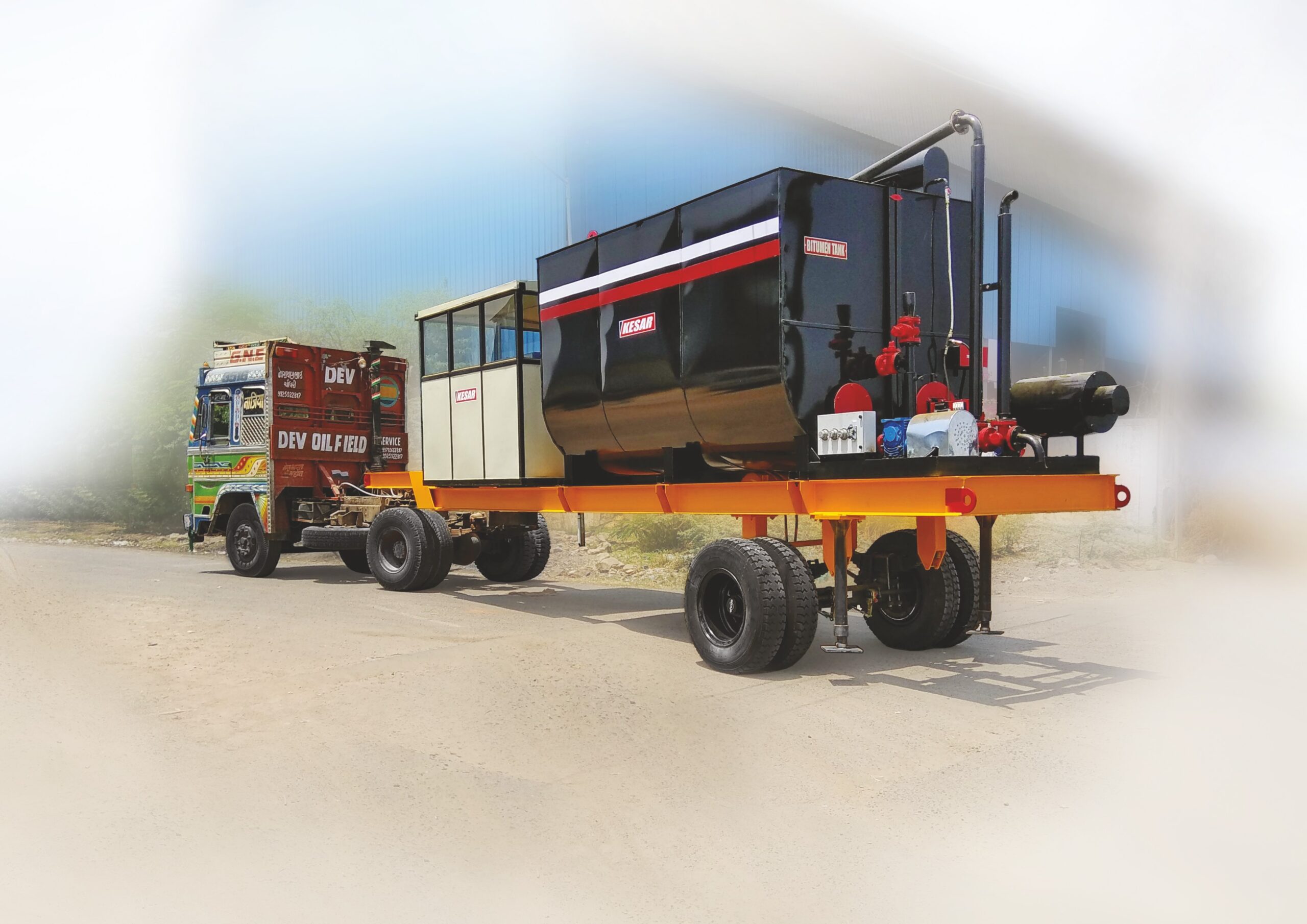

40 feet Trailer no. 2 consists of 10 Ton cap. Bitumen tank and control cabin with centralized & computerized control Panel or optionally Bitumen Tank & control cabin can be separately transported on wheels by Tractor also as per customer’s choice.
This Mobile plant does not need any crane for erection at site and can be put into operation in 2/3 days only. It is therefore, really a tactical piece of equipment for hilly remote areas and for small quantity works.
The Plant combines aesthetic with comfort for the operator & makes plant operation maintenance easier. From control cabin, the operator can control discharge of hot-mix into tipper with full clear vision. A painful task of dismounting and remounting of stationary plant when transferred, are suppressed by this mobile model.
This is an elegant machine and also very respectful of user-friendly & environment friendly as well.
Besides low investment costs, this mobile MDM-25 drastically reduced costs linked to transfer, mounting and start-up of stationary plant. With only few days’ production, they can be paid off. Besides, thanks to its noble features, maintenance expenses may be significantly cut. No costly civil foundation required, thus massive saving.
Since entire plant is mounted on two number semi trailer type chassis, it is totally controlled in factory. All adjustments of the machine, except load cell calibration are carried out by the manufacturer’s specialists during idle test run. Therefore, when leaving factory the machine ensures good performance at work site.
Thus buying such a machine is truly a strategic investment.
Fully automatic control cabin with on board electrical power control console, distribution switch board, fully automatic process controls are a standard on all Keshar Mobile Drum Mix Plants.
• Display of all process control parameters
• Auto / manual operation
• The control is equipped with function keys and numeric keys and does not require special skills for operation
The feedback from the load cell is processed by the Microprocessor, which further automatically controls and processes the bitumen proportioning.
A unique compact design of two or three bin cold aggregate feeders offers enough space to store two or three different types of aggregates while utilizing adequate space.
The bins are all-welded & modular in construction, permitting easy addition of bins to meet growing needs. Steep bin walls and valley angles allow free flow of aggregates from the feeders minimizing hold up to materials in the corners and bridging with sticky aggregates.
